5000L Liquid Cryogenic Storage Tank 20m3

Name: 5000L Liquid Cryogenic Storage Tank 20m3
Brand: MKIMM
Price: 1 USD

Brand Name : MKIMM

Model Number : MKIMM

Certification : ISO

Place of Origin : henan

MOQ : 1

Price : bargain

Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on

Supply Ability : 25 every month

Delivery Time : 15days

Packaging Details : wooden box

Product name : Cryogenic Storage Tank

Outer Material : Q345R

Volume : 5000L

Working Pressure : 1.6Mpa

Working Temperature : -196/+20 ℃

Video outgoing-inspection : Provided

Contact Now

20m3 5000L Liquid Cryogenic Storage Tank

Description

Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid like liquid oxygen, liquid nitrogen,liquid argon and liquid carbon dioxide.It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has m been widely used in gas, chemical,mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries. The tank supplies cryogenic liquid from the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can also be designed and manufactured according to users' requirements.

Parameter

Model	CFL5/1.6
Effective Capacity	5000L
Working Pressure	1.6Mpa
Design Temp	-196°C (inner tank)
Inner Material	S30408
Outer Material	Q245R
Insulation Type	High Vacuum powder insulation
Fillling Rate	95%
Loading medium	LO2,LN2,LAr
Design Standard	a.GB150 b.GB/T 18442< Cryogenic >Insulation Pressure Vessels> c.TSGR0004

Q. How does a differential pressure (dp) gauge measure level in a cryogenic tank? A. A differential pressure (dp) gauge has two ports, a high pressure port and a low pressure port. On a cryogenic tank the high pressure port of the gauge is piped to the bottom of the tank. Since the tank is pressurized the low pressure port of the gauge is piped to the top of the tank, the vapor space. The difference between the high and the low pressures then represent the height of the liquid only. On Nuzhuo level gauges, differential pressure is relayed to the gauge through a magnetically coupled sensor-indicator design.

5000L Liquid Cryogenic Storage Tank 20m3

Product Tags:

5000L Liquid Cryogenic Storage Tank

20m3 Liquid Cryogenic Storage Tank

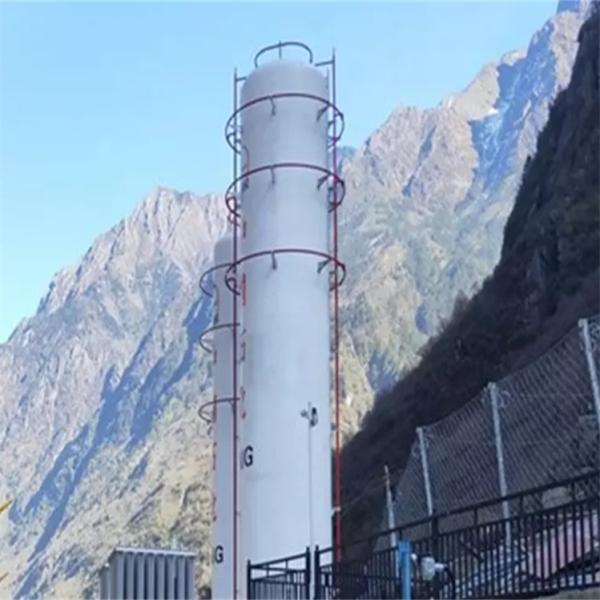

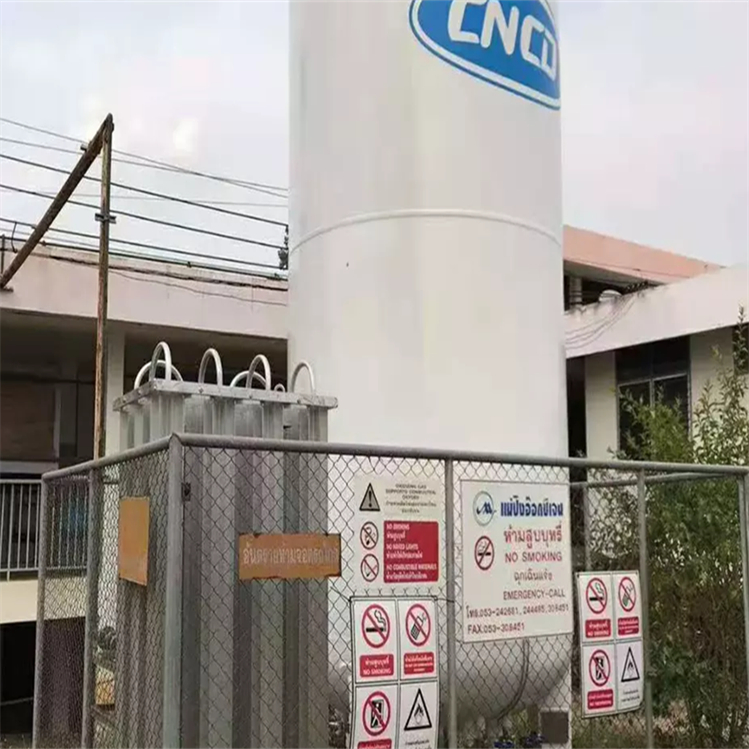

5000L Liquid Cryogenic Storage Tank 20m3 Images
